DATAMATRIX code reader
This screen is locked and can be accessed at operator/adjuster level "OPE" and at technician level "TECH"
This screen allows you to activate the DataMatrix control by means of the two-state button :
OR

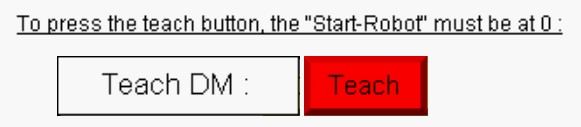

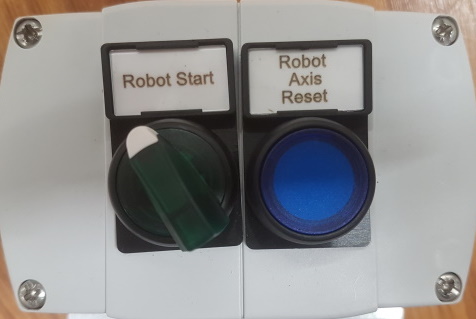

It is also possible to learn the DataMatrix code using the "Teach" push button. To learn the DataMatrix code, the "start robot" selector must be inactive :
To access the different screens "PROG POSITIONS", "PARAM SCREEN", "PROD SCREEN" and "AXIS HOMING SCREEN" in the lower band press the "F1" "F2" "F3" and "F4" keys :
